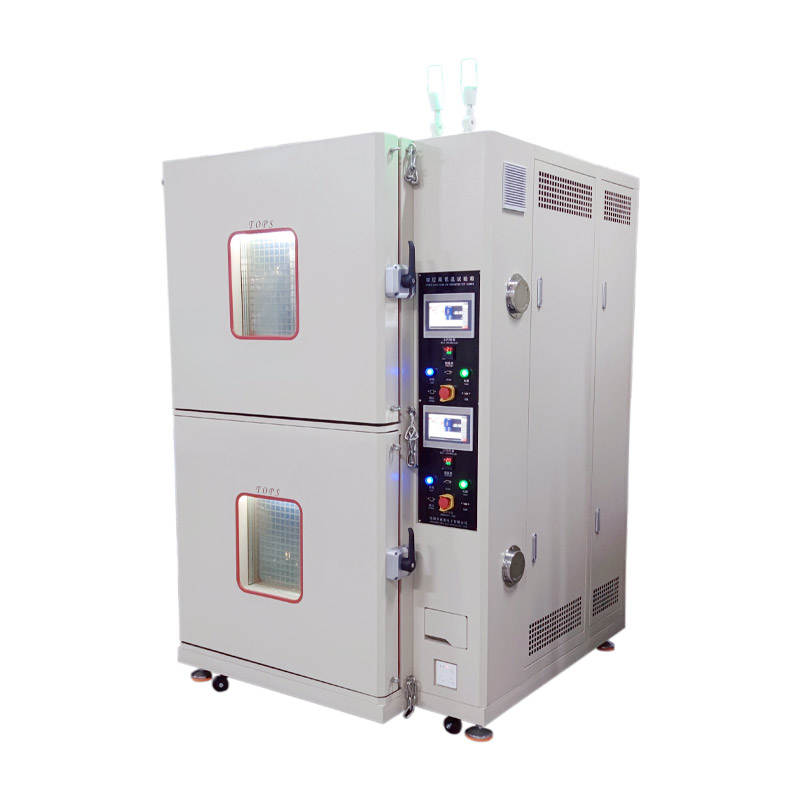

Bilayer high-low temperature&humidity test chamber

Utility model patent: Energy saving temperature control system ZL2019221942311.1 for high and low temperature alternating humidity test chamber

Utility model patent: Energy saving refrigeration system ZL201922189626.2 for high and low temperature alternating wet heat test chamber

Software Copyright: Temperature and Humidity Energy saving Control System - Software Copyright Registration No. 0970592

CE Safety Certification: High and Low Temperature Alternating Damp Heat Test Chamber AT58250SC01008502

Consult Now

+86-755-26478771

Equipment Introduction

1. Device introduction:

The equipment is used to test and verify the conformity of electrical and physical properties of samples under high and low temperature or alternating humidity and heat environments,so it widely used in aviation, aerospace, electronics, electrical appliances, communications, automobiles, new energy, military and other industries; It can perform high temperature storage, low temperature storage, high temperature and humidity, humidity and heat alternating change test.

2. Device features :

2.1. The device can perform the test of "85 ℃ & 85% RH" high temperature and high humidity,  "25 ℃&30% RH" low temperature and low humidity; And do not produce condensation and water droplets during the test. Meantime it can realize the synchronous slope rise and fall of humidity in the process of temperature slope rise or fall。

2.2. The intelligent control software "temperature and humidity energy-saving control system" with the company's own intellectual property rights is adopted, combined with the patented hardware of utility model "an energy-saving refrigeration system of high and low temperature alternating damp heat test chamber";Compared with the traditional control mode, the energy consumption of machine in normal operation saves 40% of electric energy。

2.3. More than 2400 hours of single fault free continuous operation; The operating life of the machine is more than 100000 hours, the safety performance has passed the EU CE safety inspection certification (CE certificate: at58250sc01008502)。

3.Device specification:

Model No.

TC/PTH-II-360D2/F2/G2

TC/PTH-II-408D2/F2/G2

Internal volume

360L*2

408L*2

Internal size

W80×H75×D60cm*2

W125*H198*D176cm

W85×H80×D60cm*2

External size

W125×H198×D176cm

W135×H208×D176cm

Temperature range

D: -40℃~+150℃;  F: -60℃~+150℃;  G: -70℃~+150℃

Humidity range

10%~98%R.H ( TC series not applicable )

Temperature deviation

≦±1.0℃(-70~+100℃);  ≦±1.5℃(+101~+150℃)

Temperature uniformity

≦±1.0℃(-70~+100℃);  ≦±1.5℃(+101~+150℃)

Humidity deviation

≦±2.0%R.H

Humidity uniformity

≤3.0%R.H

Heating rate

0.1~3.0°C/min Can be ramp set

Cooling rate

0.1~1.5°C/min Can be ramp set

Power source

380Vac/8.0kw

380Vac/8.0kw

Device weight

750kg

850kg
