Invention patent: Water supply structure of wet heat system in high and low temperature alternating wet heat test chamber ZL20191125128.4
Utility model patent: Energy saving temperature control system ZL2019221942311.1 for high and low temperature alternating humidity test chamber
Utility model patent: Energy saving refrigeration system ZL201922189626.2 for high and low temperature alternating wet heat test chamber
Software Copyright: Temperature and Humidity Energy saving Control System - Software Copyright Registration No. 0970592

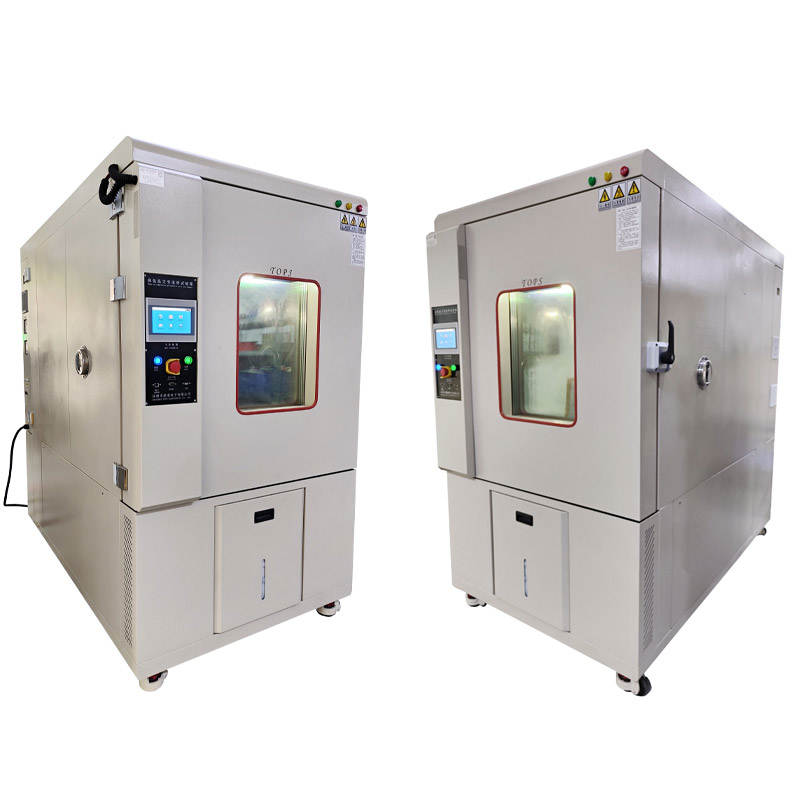

1. Device introduction:
The equipment is used to test and verify the conformity of electrical and physical properties of samples under high and low temperature or alternating humidity and heat environments,so it widely used in aviation, aerospace, electronics, electrical appliances, communications, automobiles, new energy, military and other industries; It can perform high temperature storage, low temperature storage, high temperature and humidity, humidity and heat alternating change test.
2. Device features :
2.1. The device can perform tests for "85 ℃&85% RH" high temperature and high humidity, "40 ℃&10% RH" high temperature and low humidity, "25 ℃&5% RH" low temperature and low humidity; And ensure that no condensation or water droplets are generated during the testing process. Simultaneously, it can achieve precise control of both temperature and humidity slopes by synchronously implementing the linear slope rise and fall of humidity under the condition of "temperature linear rise or fall";
2.2 Adopting electronic expansion valve servo control of refrigerant flow throttling technology reduces energy consumption by 30%; Continuous operation without fault at low temperature for ≥ 2400 hours; The device has a lifespan over 100000 hours, and its safety performance has passed the EU CE safety certification.
3.Device specification:
Model No. |
PTH-III-225D |
PTH-III-408D |
PTH-III-1000D |
Internal volume |
225L |
408L |
1000L |
Internal size |
W60xH75xD50cm |
W60xH85xD80cm |
W100xH100xD100cm |
External size |
W88xH175xD135cm |
W88xH185xD175cm |
W128xH202xD196cm |
Rated power |
380V/5.6kw/ |
380V/5.7kw |
380Vac/13.0kw |
Device weight |
380kg |
450kg |
680kg |
Temperature range |
-40℃~+150℃ |
||
Humidity range |
5%~98%R.H |
||
Temperature deviation |
≦±1.0℃(-40~+100℃); ≦±1.5℃(+101~+150℃) |
||
Temperature uniformity |
≦±1.0℃(-40~+100℃); ≦±1.5℃(+101~+150℃) |
||
Humidity deviation |
≦±2.0%R.H |
||
Humidity uniformity |
≤3.0%R.H |
||
Average heating rate |
Average heating rate≥5.0℃/min |
||
Average cooling rate |
Average cooling rate≧3.0℃/min |
||
Linear heating rate |
0.1~3.0°C/min Can be ramp set |
||
Linear cooling rate |
0.1~1.5°C/min Can be ramp set |
||
Refrigeration method |
Electronic expansion valve throttling |
