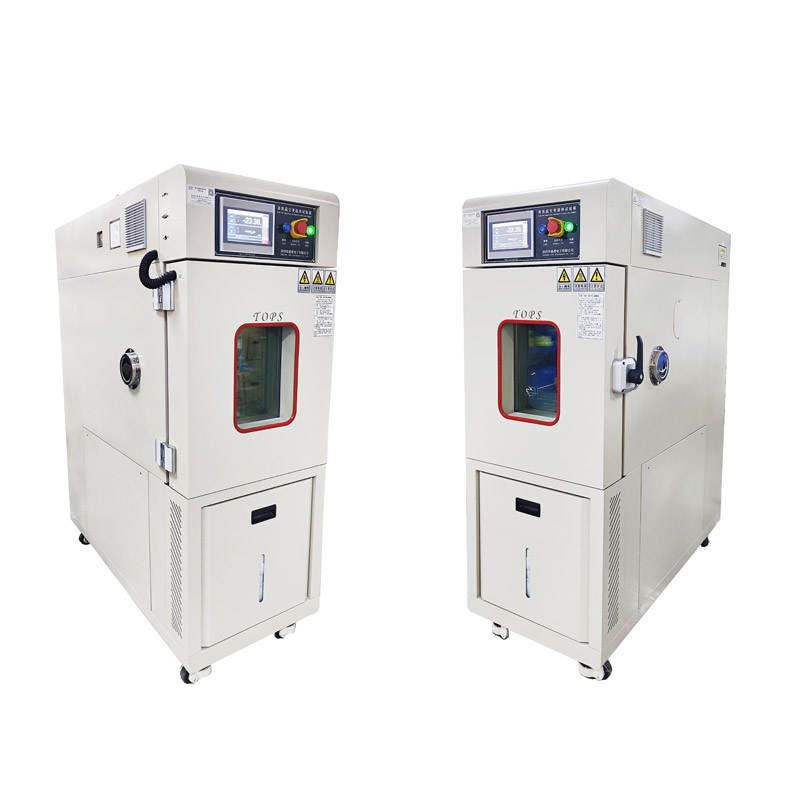

Small size high low temperature&humidity test chamber

Invention patent: Water supply structure of wet heat system in high and low temperature alternating wet heat test chamber ZL20191125128.4

Utility model patent: Energy saving temperature control system ZL2019221942311.1 for high and low temperature alternating humidity test chamber

Utility model patent: Energy saving refrigeration system ZL201922189626.2 for high and low temperature alternating wet heat test chamber

Software Copyright: Temperature and Humidity Energy saving Control System - Software Copyright Registration No. 0970592

CE Safety Certification: High and Low Temperature Alternating Damp Heat Test Chamber AT58250SC01008502

Consult Now

+86-755-26478771

Equipment Introduction

1. Device introduction:

The equipment is used to test and verify the conformity of electrical and physical properties of samples under high and low temperature or alternating humidity and heat environments,so it widely used in aviation, aerospace, electronics, electrical appliances, communications, automobiles, new energy, military and other industries; It can perform high temperature storage, low temperature storage, high temperature and humidity, humidity and heat alternating change test.

2. Device features :

2.1. The equipment production and testing are strictly carried out in accordance with the technical conditions of the GB/T10586-2006 damp heat test chamber. The damp heat simulation ability can be carried out according to the standard requirements of "85 ℃&85% RH" high temperature and high humidity, "25 ℃&40% RH" low temperature and low humidity, and all performance meets national standards and international testing standards such as GB2423&IEC60068.

2.2 More than 2400 hours of single fault free continuous operation; The operating life of the machine is more than 100000 hours, the safety performance has passed the EU CE safety inspection certification (CE certificate: at58250sc01008502).

3.Device specification:

Model No.

PTH-II-100G

Internal volume

100L

Internal size

W40xH50xD50cm

External size

W68xH172xD120cm

Rated power

220Vac/3.0kw/14.0A

Device weight

250kg

Temperature range

-65℃~+150℃

Humidity range

20%~98%R.H

Temperature deviation

≦±1.5℃

Temperature uniformity

≤1.5℃

Humidity deviation

≦±3.0%R.H

Humidity uniformity

≤3.0%R.H

Average heating rate

Average heating rate≥5.0℃/min

Average cooling rate

Average cooling rate≧2.0℃/min

Linear heating rate

0.1~3.0°C/min Can be ramp set

Linear cooling rate

0.1~1.5°C/min Can be ramp set
