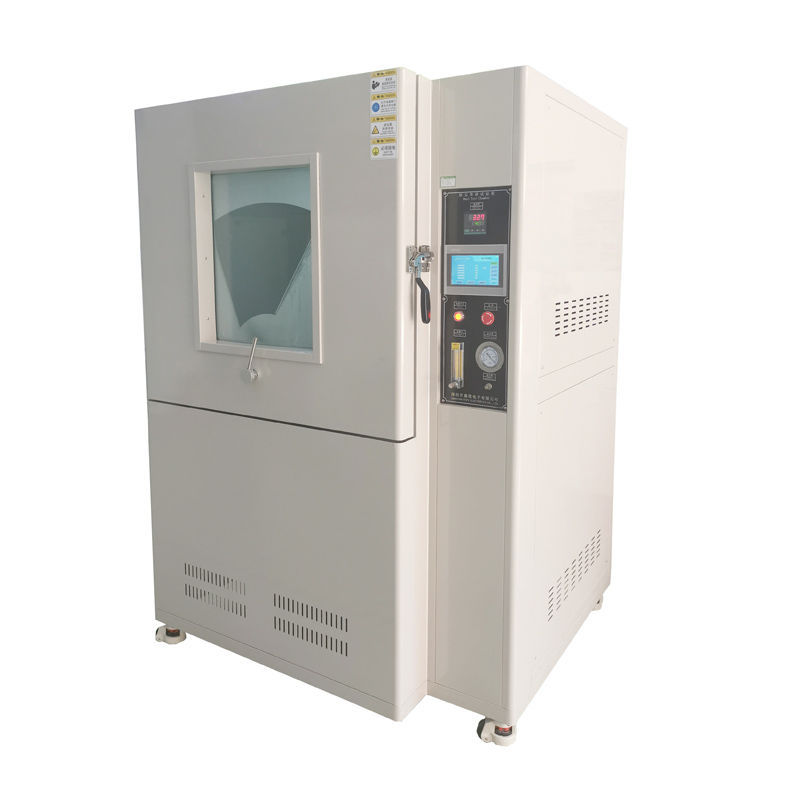

1.Device introduction:
This tester is used to test the dustproof ability of the mobile phone, automobile parts, motor switches, electrical and electronic, electrical appliances and other products.
2. Applicable standard:
Applicable to IEC-529,GB4280-93 ; GB2423.37-89; GB10485 and the equivalent JIS, DIN, MIN test standard.
3. Device Specification:
Model No. |
FC-1000SC |
Internal size |
W100×H100×D100cm |
External size |
W140×H190×D120cm |
Sieve diameter |
50um |
Air velocity |
1~3m/s Can be adjusted |
Tale powder |
2kg~4kg |
Dust concentration |
2Kg/m3 |
Play / stop time |
Blowing dust 1min/Stop time 59min and can be set |
Vibration / oscillation stop time |
0~9999H Can be set |
Vacuum pump rate |
1 m³ /H |
Air flow meter |
150~1500NL/H |
Vacuum pumping time |
0~9999H Can be set |
Control system |
PLC+LCD touch panel+ servo motor |
Materialfe |
SU304# stainless steel plate |
Power supply |
AC220V/50Hz/10A or AC110V/60Hz/20A |
