Utility model patent: Energy saving temperature control system ZL2019221942311.1 for high and low temperature alternating (wet heat) test chamber
Utility model patent: Energy saving refrigeration system ZL201922189626.2 for high and low temperature alternating (wet heat) test chamber
Software Copyright: Temperature (Humidity) Energy saving Control System - Software Copyright Registration No. 0970592
CE Safety Certification: High and Low Temperature Alternating Test Chamber AT58250SC01008502

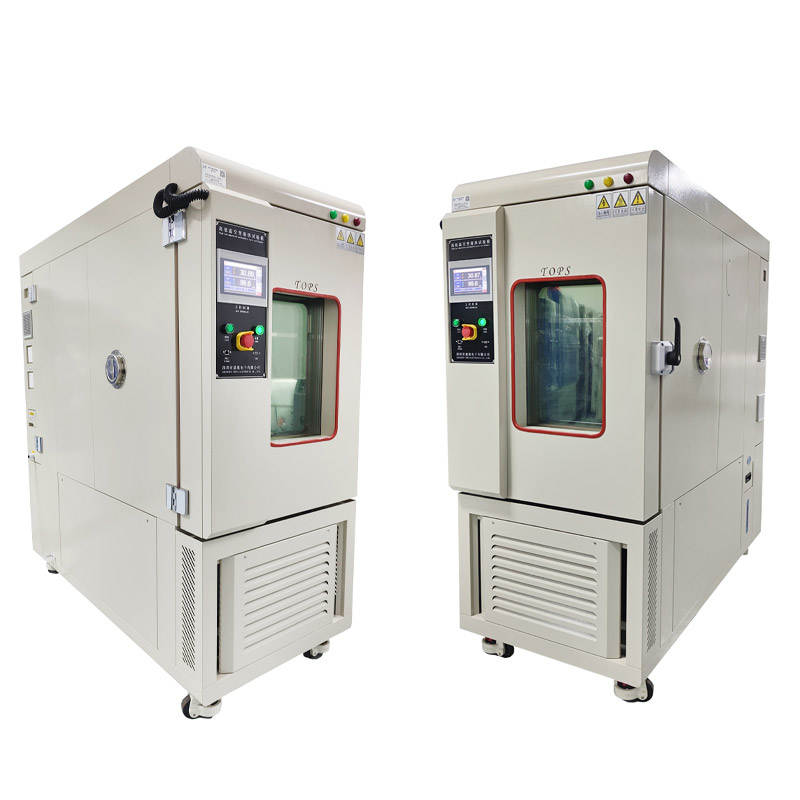

1. Device introduction：
The test chamber was used to test and verify the conformity of electrical and physical properties of samples under high temperature, low temperature, and alternating high and low temperature environments; It can conduct multiple climate and environmental tests, including high-temperature storage/operation, low-temperature storage/operation, and high-low temperature cycling; Suitable for industries such as aerospace, electrical and electronic, household appliances, communication, automotive, new energy, military, etc.
2. Device features :
2.1.Accurate and stable: volatility: ≤± 0.3 ℃; Temperature deviation: ≤± 1.0 ℃; Temperature uniformity ≤ 1.0 ℃; Heating rate: 0.05-3.0 ℃/min with linear slope setting; Cooling rate: 0.05-1.5 ℃/min can be set with a linear slope; All performance indicators comply with national standards such as GB2423 and IEC60068, as well as international testing standards。
2.2 Safe and energy-saving：The throttling technology using electronic expansion valves for precise servo control of refrigerant saves 30% energy compared to traditional capillary throttling methods; And it can achieve a single low-temperature fault free continuous operation for 2400 hours; The overall operating life of the machine is over 100000 hours, and its safety performance has passed the EU CE safety inspection and certification (CE certificate: AT58250SC01008502）。
3.Device specification：
|
Model No. |
TC-II-225D/F/G |
TC-II-408DD/F/G |
TC-II-1000D/F/G |
TC-II-1800D/F/G |
|
Refrigeration principle |
D：Single-stage refrigeration；F/G：Dual-stage refrigeration |
|||
|
Internal volume |
225L |
408L |
1000L |
1800L |
|
Internal size |
W60xH75xD50cm |
W60xH85xD80cm |
W100xH100xD100cm |
W150xH100xD120cm |
|
External size |
W88xH175xD135cm |
W88xH185xD175cm |
W128xH202xD172cm |
W178xH212xD225cm |
|
Rated power |
380V/5.4kw |
380V/5.5kw |
380V/12.8kw |
380V/13.3kw |
|
Device weight |
320kg |
400kg |
600kg |
900kg |
|
Temperature range |
D：-40℃～+150℃；F：-40℃～+150℃； G：-40℃～+150℃ |
|||
|
Temperature deviation |
≦±1.5℃ |
|||
|
Temperature uniformity |
≦1.5℃ |
|||
|
Average heating rate |
-20 ℃ to+100 ℃ Heating rate≥5.0℃/min |
|||
|
Average cooling rate |
Average cooling rate≧3.0℃/min |
|||
|
Linear heating rate |
0.1～3.0°C/min Can be ramp set |
|||
|
Linear cooling rate |
0.1～1.5°C/min Can be ramp set |
|||
