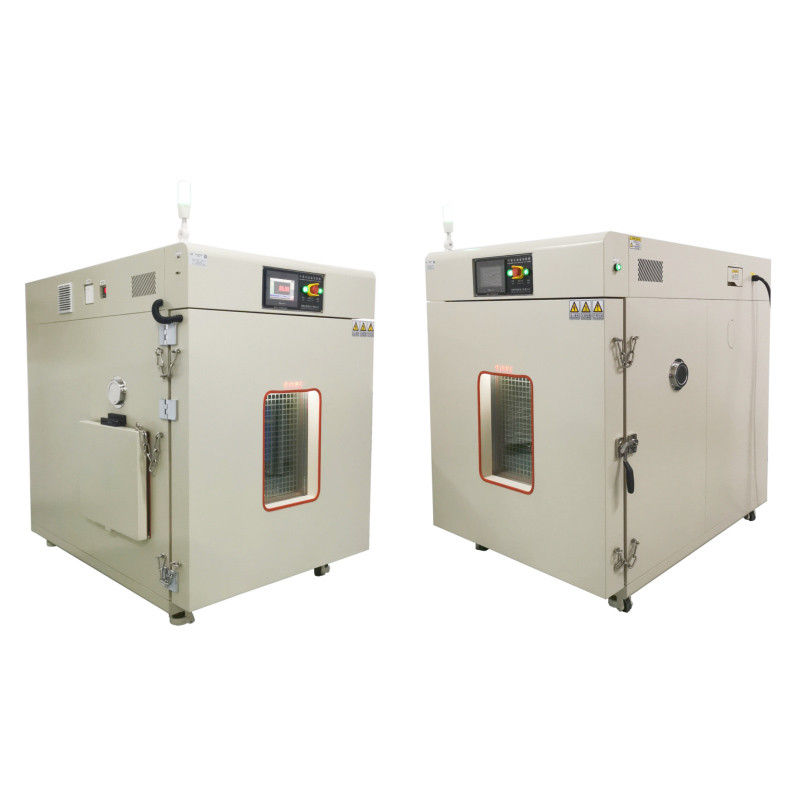

1. Device Introduction:
Adopting a touch programmable temperature controller, with a heating rate of 1-5 ℃/min and a slope setting, it has the characteristics of simple operation and high temperature control accuracy; Widely used for experimental level high-temperature testing of electrical, electronic, and new energy lithium battery products.
2. Device specification:
|
Model No. |
HT-II-270A/B |
HT-II-500A/B |
HT-II-1000A/B |
|
Internal capacity |
270L |
512L |
1000L |
|
Internal size |
W60xH75xD60cm |
W80xH80xD80cm |
W100xH100xD100cm |
|
External size |
W88xH136xD120cm |
W108xH142xD140cm |
W128xH162xD160cm |
|
Temp. range |
A: RT+10～200℃; B：RT+10～300℃ |
||
|
Temperature resolution |
0.01℃ |
||
|
Temperature deviation |
±0.5℃ |
||
|
Temperature deviation |
±2.0℃（RT+10～200℃）；±3.0℃（201～300℃）； |
||
|
Heating rate |
0.1-5.0°C/min can be ramp set |
||
|
Cooling rate |
≧2.0℃C/min (Turn on the cooling fan to cool down) |
||
|
Power supply |
AC220V/50Hz/3.6KW |
AC220V/50Hz/4.5KW |
AC380V/50Hz/6.5KW |
