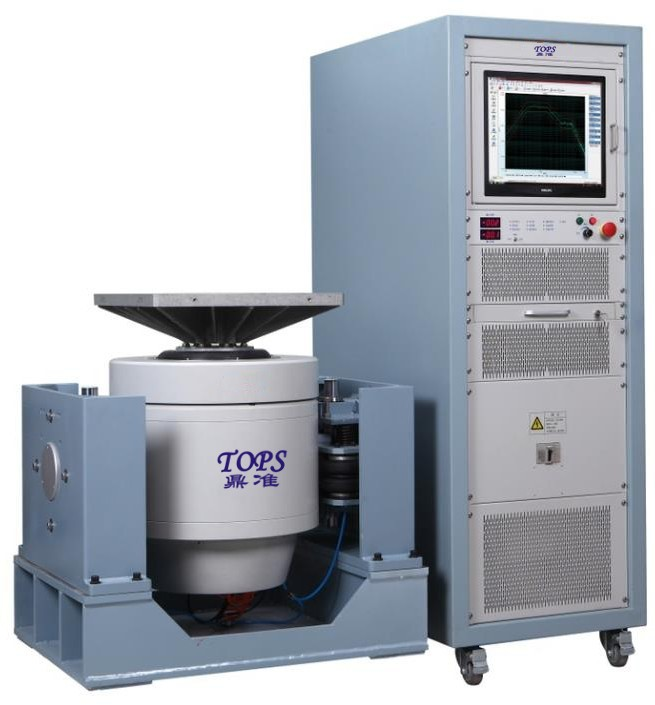

1. Application of the equipment
Vibration testing machine can provide product in vibration environment manufacture, transport and use in the process of identification, whether the product has the ability to withstand the environment, so the product can be used for the detection of early fault, simulating the actual working condition assessment and structural strength test. This product is widely used in national defense, aviation, aerospace, communications, electronics, electrical appliances, automobile manufacturing and other industries. In accordance with various countries military, business regulations GB, vibration test specifications etc.
2. Application Standard
Apply to MIL、ASTM、IEC、ISO、BS、JIS standard.
2.Device specification
Model No. |
EVTS-300-3 |
EVTS-600-3 |
EVTS-1000-6 |
EVTS-2000-6 |
EVTS-3000-6 |
EVTS-4000-6 |
EVTS-5000-6 |
Thrust Force |
300 kgF |
600 kgF |
1000 kgF |
2000 kgF |
3000 kgF |
4000 kgF |
5000 kgF |
Frequency Range |
2-4000 Hz |
2-4000 Hz |
2-4000 Hz |
1-3000 Hz |
1-3000 Hz |
2-2800 Hz |
2-2700 Hz |
Peak Acceleration |
100 g |
100 g |
100 g |
100 g |
100 g |
100 g |
100 g |
Peak Displacement |
25.4 mm |
51 mm |
51 mm |
51 mm |
51 mm |
51 mm |
51 mm |
Peak Load |
120 kg |
300 kg |
300 kg |
300 kg |
300 kg |
500 kg |
1000 kg |
量Coil Weight |
3 kg |
6 kg |
10 kg |
22kg |
32kg |
34kg |
55kg |
Coil diameter |
150mm |
200 mm |
240 mm |
320mm |
340 mm |
370 mm |
445 mm |
Vertical Sliding table |
40*40cm |
40*40cm |
40*40cm |
50*50cm |
60*60cm |
80*80cm |
100*100cm |
External size W*D*H (cm) |
75*60*68 |
74*63*77 |
106*75*84 |
120*78*100 |
127*100*115 |
133*86*120 |
160*110*140 |
Weight |
490 kg |
730kg |
960kg |
1650kg |
1920kg |
2470kg |
4500kg |
