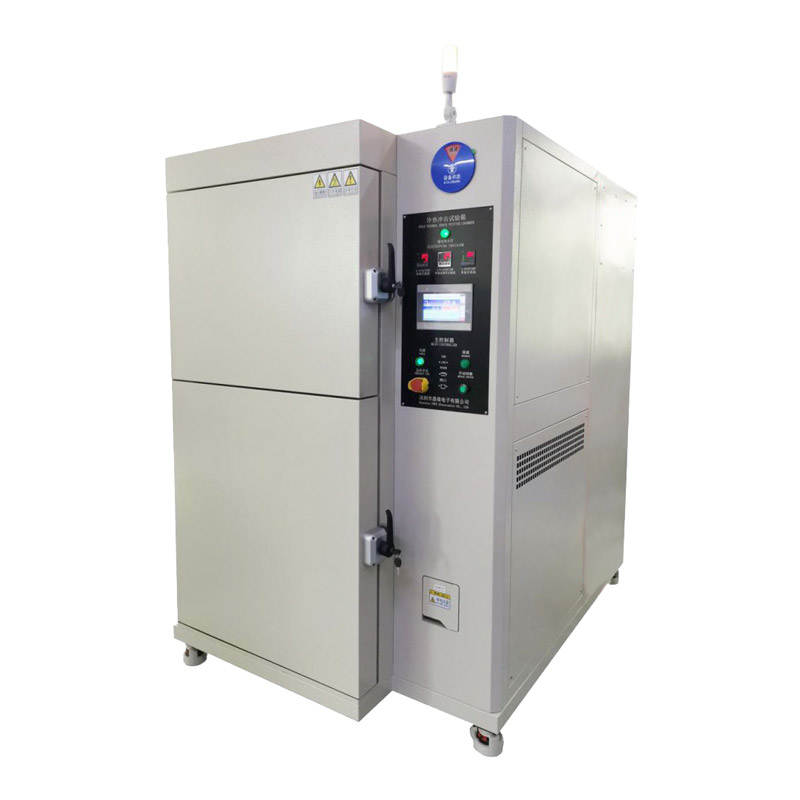

Small size thermal shock test chamber for 2 Temp. zone

Utility model patent: Energy saving refrigeration system ZL202221162918.2 for cold and hot shock test chamber

Software Copyright: Energy saving Temperature Thermal Shock Test Measurement and Control System (Software Patent No. 0922788)

CE Safety Certification Number: AT58250SC01000086

Consult Now

+86-755-26478771

Equipment Introduction

1.Device introduction:

This device is a small (external dimensions: W96 * H186 * D137cm) fully functional thermal shock test box specially designed for technology-based enterprises in office buildings. It can easily enter the elevators and placement areas of conventional office buildings; The cold and hot shock testing machine is used to test the tolerance and reliability of various raw materials or finished products under the climate environment of instantaneous transition between extreme high temperature and extreme low temperature, and evaluate their physical, chemical, and electrical properties

2. Device features:

2.1. The equipment production and testing are strictly carried out in accordance with national standards, with key core parameters such as temperature deviation, fluctuation, uniformity, test chamber air reset time, and sample surface reset time meeting the relevant requirements of GB2423 (IEC60068), which can completely replace similar products in Europe, America, and Japan.

2.2. More than 2400 hours of single fault free continuous operation; The operating life of the machine is more than 100000 hours, the safety performance has passed the EU CE safety inspection certification.

3. Device specification:

Model No.

TS-II-20A

Internal volume

20L

Internal dimension

W23×H30×D30cm

External dimension

W96×H186×D137cm

Weight(Kg)

700

Device structure

2 temp. zone structure, it is divided into two parts: cold zone and hot zone, and can be automatically switched by lifting the pneumatic program of the hanging basket.

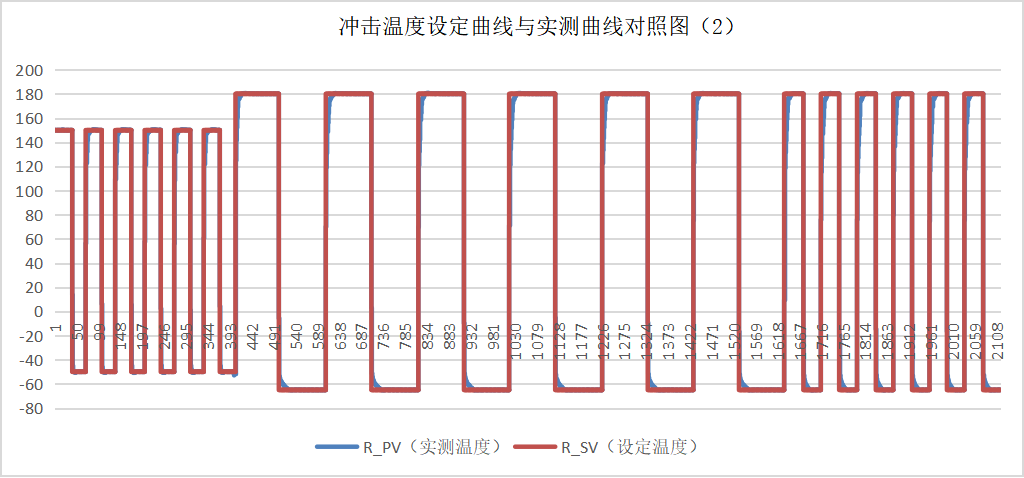

Shock test mode

Low temperature → high temperature→ low temperature or high temperature→

low temperature →high temperature; so reciprocating cycle

Performance parameter

Temp. range

Temperature shock range

A type(-40~180°C)

High temperature storage range

60℃~200℃

Low temperature storage range

-60℃~-10℃

Shift time

≤10S

Recovery time

≤3Min

Sample surface recovery time

≤6Min(Subject to IC surface)

Temperature uniformity

≤2.0℃

Temperature deviation

≦±2.0℃
