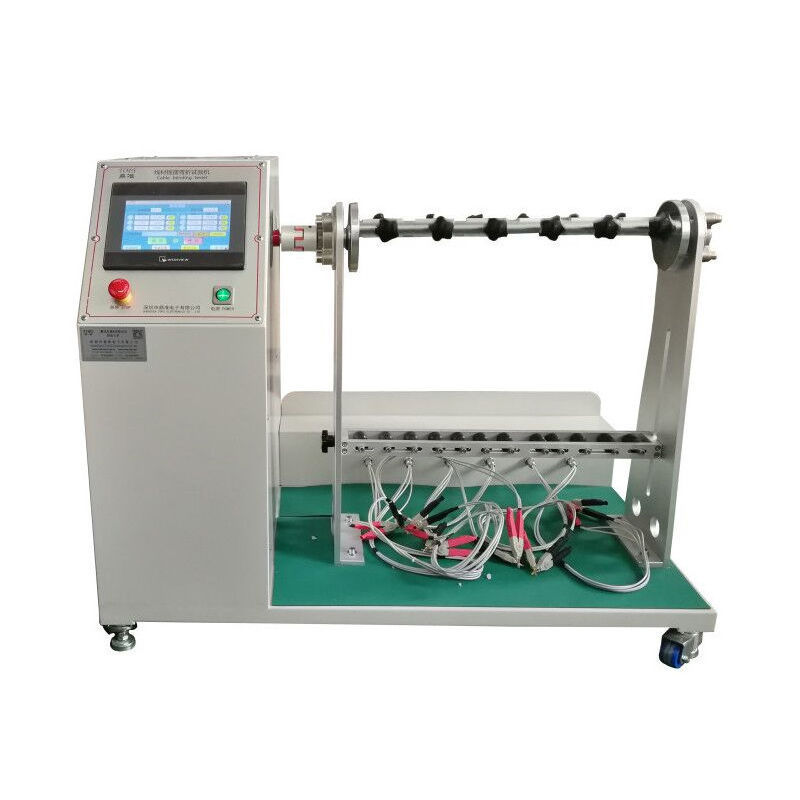

1. Device introduction
The testing machine with UL817and other relevant standards" communication cords and power supply cords general safety requirements " provisions. Applicable to manufacturers and quality inspection department of the power line， DC line， cable， bending test.
2.Device specification:
|
Model No. |
CT-8817AR |
CT-8817BR |
|
Test angle |
±90°can be set |
±180°can be set |
|
Angle precision |
±0.5° |
|
|
Impedance range |
0～50.00Ω |
|
|
Impedance precision |
±1.0%F.S |
|
|
Test station |
6pcs |
|
|
Test speed |
5~60 times/Min |
|
|
Device size |
W92*D82*H60cm |
|
|
Device weight |
96kg |
|
