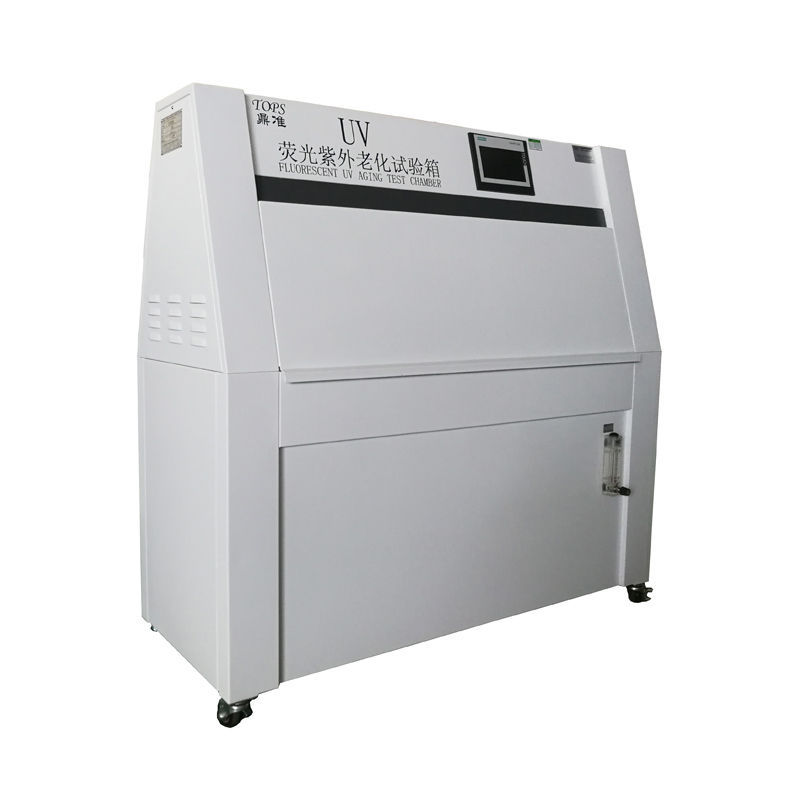

UV aging test chamber，UV aging test chamber UV mainly uses the United States ATLAS UV tube as the light source. The product can change or control the irradiance，temperature，relative humidity，the spray and Simulation of ultraviolet light，outdoor heat and rainfall comprehensive conditions to carry out the artificial accelerated aging test of the samples.
2. Applicable standard: ASTM D4329 ( plastic ); ASTM G151， ASTM G154 ; EN 927-6 ( wood paint ); EN 1297 ( roofing ); EN13523 ( coil coatings ); ISO 11507 ( coating ); ISO 4892-1， ISO11895， EN1898， EN 12224 ( Textile Technology ); ISO 11997-2; GB/T14522-93 GB/T16422.3-1997 GB/T16585-96；
3. Device Specification:
|
Model |
UV-1A |
|
|
Irradiance control method |
Irradiance can be set according to requirement |
|
|
Condensation style |
Electric heating water generating condensation system |
|
|
Studio temperature |
Temp. range:40～70℃; Temp.deviation：±2℃ |
|
|
Light source |
Light source type |
UVA or UVB UV Fluorescent ultraviolet lamp |
|
Power |
40W*8 |
|
|
Wavelength range |
UVA:0.25～1.55 W/m2 can be set( Can option 340nm or 351m UVA lamp ) UVB:0.25～1.25W/m2 can be set( 313nm UVB lamp ) |
|
|
structure |
Inner materials |
SUS304# Stainless steel plate |
|
Air heating |
Nickel chrome heater |
|
|
Water heating |
Nickel chrome heater |
|
|
Light qty. |
8 pcs |
|
|
Control system |
PLC+ Touch panel+ Patent irradiation control system |
|
|
Standard sample |
The standard model 24 standard sample frame ( 75×300mm) |
|
|
Condensation control |
Condensation directly display and automatic control |
|
|
循环方式Circulation mode |
Light， condensation， spray directly display and automatic control |
|
|
Light irradiance
|
Test process can set light irradiance energy and time |
|
|
Spray water
|
Adjustable and display， automatic control， test process can set the time of the spray |
|
|
Calibration function |
Automatic temperature calibration， convenient， fast |
|
|
Device size |
W120×H150×D45cm |
|
|
Supply Power |
AC220V/50Hz/10A or AC110V/60Hz/20A |
|
