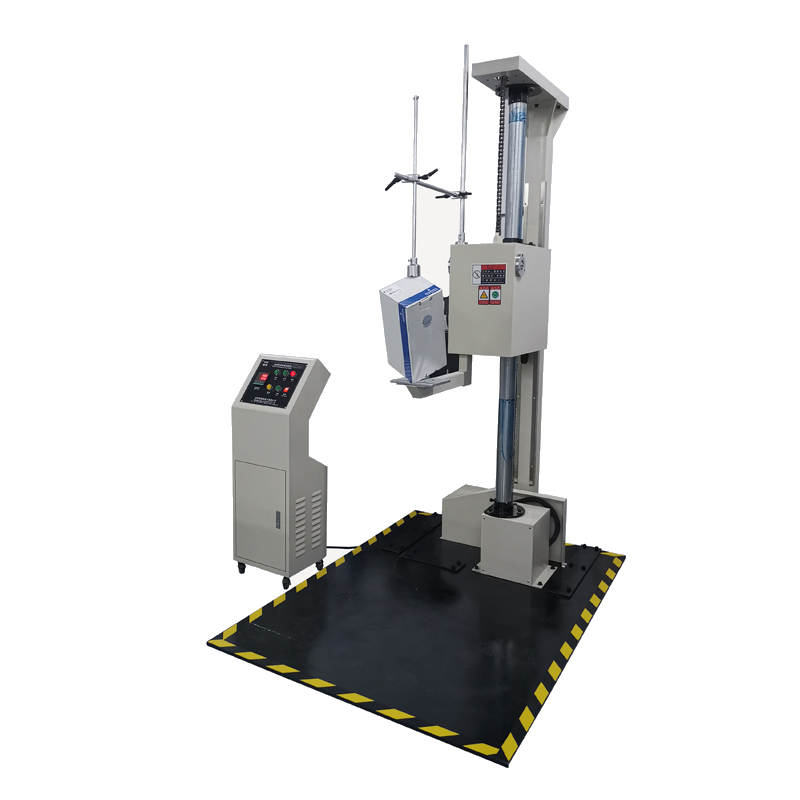

1. Device introduction:
This machine is specially used to simulate individual products or product packaging by the fall or the transport process by the impact, assessment of product packaging protection performance. Applicable standards:ISO 2248 JIS Z0202-87 GB/T4857.5-92
2.Device specification:
Model No. |
DT-1500PEC |
DT-2000PEC |
Drop control mode |
Electric control: EC |
|
Drop height range |
30~150cm |
30~ 200cm |
Display mode |
LED display |
|
Sample max.weight |
80KG |
|
Sample clamping way |
Edge, angle, surface |
|
The drive motor |
AC motor |
|
Transmission |
High Accuracy of Ball Screw |
|
Weight |
400kg |
600KG |
Power supply |
AC380V,50HZ |
